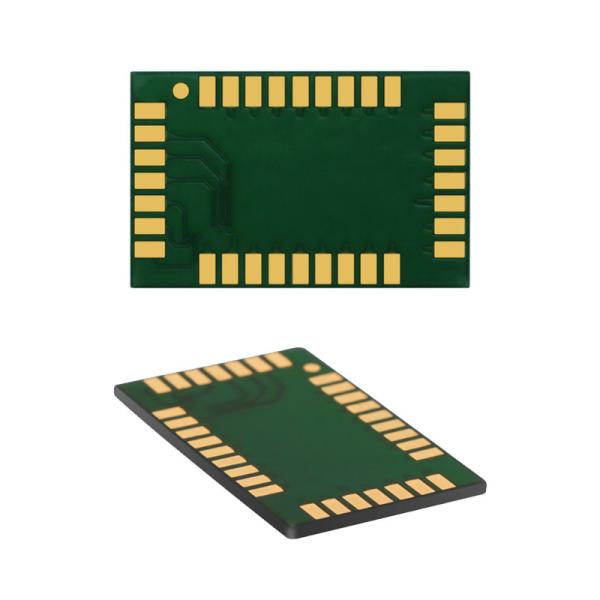

Tiny Arduino Capacitive Fingerprint Sensor OEM Module LGA Slim For Time Attendance System

Brand Name : HYF

Model Number : FL360

Certification : CE

Place of Origin : Shenzhen,China

MOQ : 1000 units

Price : Prices can be negotiated

Payment Terms : L/C, T/T

Supply Ability : 30000 units per year

Delivery Time : 25-30days

Packaging Details : 172*143*30mm

Product name : Capacitive fingerprint sensor

Platen Size : 15.3*11.40 mm

Fingerprint Image Size : 256*360 pixels

Image Resolution : 508 dpi

Strong Adaption : adaption for wet/ dry fingers

support 360 degree rotation authentication : support 360 degree rotation authentication

Application : Telecommunication

MOQ : 1000 pcs

Contact Now

Slim And Tiny Fingerprint Sensor LGA For Time And Attendance System

Does fingerprint LGA support read and write fingerprint template ?


Answer: Yes, fingerprint LGA support read and wrtie fingerprint template . If you need, you can extract the fingerprint templates from fingerprint LGA by the read template command and wrtie fingerprint template into the fingerprint LGA from other place by write template command.


Does fingerprint LGA have waterproof function ?


Answer: Fingerprint LGA only suit for indoor working environment . It is not waterproof. If you need waterproof functions.

Technical Support

To support you electronic engineers to do developing works, Herofun will provide you following materials after you bought the product

1. User Manual of LGA ( Command Protocols Included)

2. DEMO Software For Testing Purpose

Specification

Physical Parameter
Capture Mode Capacitive sensor
Platen Size 14.5*19.70 mm
Sensing Area 12.8*18.0mm
Fingerprint Image Size 256*360 pixels
Image Resolution 508 dpi
Gray level 256 level

Communication Mode
Communication Interface SPI

Operation environment
Work Voltage 3.3V
Work Current 50mA
Temperature -20℃-85℃
Humidity 40%-80% R.H
ESD Contact: ± 8KV Air: ± 15KV

Supported OS
Windows XP / 7 / 8 / 10, Android, Linux, Embedded

Product details

Tiny Arduino Capacitive Fingerprint Sensor OEM Module LGA Slim For Time Attendance SystemTiny Arduino Capacitive Fingerprint Sensor OEM Module LGA Slim For Time Attendance System
